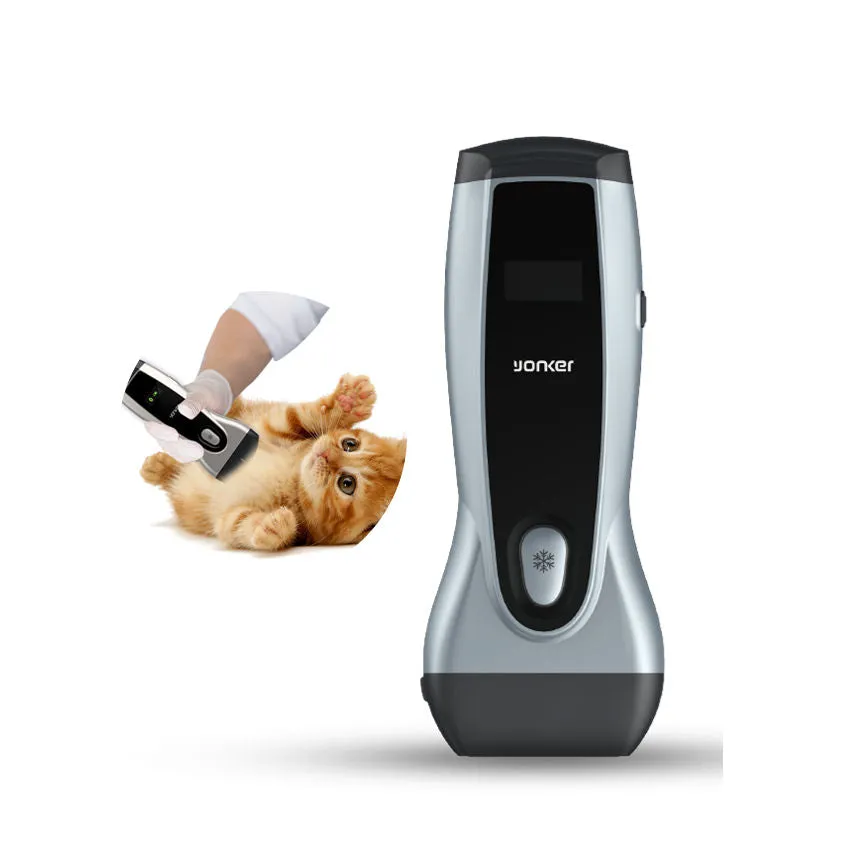

Veterinary USB Ultrasound Probe
Features:
Light, portable, easy operation.
High frequency, easier check for small organs.
Professional Veterinary software supports all kinds of Android system.
Remote support system to share, read images and videos.
Humanization design holder and belt for cellphone.
Improve the efficiency of medical staff reduce the difficulty of work, and make animals more comfortable
Technical Specifications:
|
Exam Mode |
Small Parts ,General |
|
Auto-freeze time |
5,15,30,45mins or never |
|
Probe Number |
UL8-4T |
|
B mode |
|
|
Gain |
0-100, TGC 6 segments Gain Adjustment |
|
Depth |
20-100mm |
|
DR |
45-80 step 5 |
|
SRI |
1-8 |
|
Persistence |
1,2,3,4 |
|
Gray map |
1-8 |
|
Color |
8 kinds |
|
Body Mark |
102 kinds |
|
Measurement |
|
|
Comment |
Square chart , circle chart, arrow , text , Body Mark |
|
Display Center Line |
Yes or No |
|
Display Table Lines |
Yes or No |
|
Image Size |
Full screen/Image Only |
|
Probe parameters display |
Yes or No |
|
Parameters Display position |
Left or Right |
|
Operation Mode |
Horizontal, Vertical,Adaptive |
|
Area method |
Ellipse, trace |
|
Volume method |
Ellipse, Ellipse 1 distance, 1 distance, 2 distance, 3 distance |
|
Usage time |
Last for 4 hours |
